PLC Programming Software

$300.00

Out of stock

SKU

PLCS/15

The third in our PLC programming course collection is designed for people who have an understanding of PLC ladder programming and want to know how to configure PLC software, PLC emulators, PLC hardware, communication drivers, and PLC parameters.

For information on course content, learning activities, and assessment click here

Details

PLC Application

This course is designed for those who have completed the PLC Programming Introduction course or understand PLCs and want to learn about PLC software and PLC hardware, and the communications between PLC software and hardware. The course includes configuring PLC programming software, PLC emulator parameters, and communication drivers to connect virtually to a PLC and monitor the status. Writing, testing, and debugging PLC ladder programs from a specification to check and test the configuration. PLC instructions used include bit, off delay, down counter, shift, integer. Each project uses a process description to develop a PLC ladder program solution. This is the same method used in industry to write PLC programs to a customer specification. Assessments are based upon the relevant performance and skills requirements described in the UEE Electrotechnology training package. Completion of this course will prepare you for the next course in the series PLC Programming Essentials.

Content

4 PLC Training Projects
4 Training Videos
Online Learning and Study Resources
Online Knowledge and Skills Quizzes
Scheduled Online Q&A Sessions
Certificate of Completion
Hrs to Complete - 40

Learning Activities

Apply WHS/OHS practices
Download and install PLC software
Learn how computers and PLC software works
Configure PLC software
Configure PLC hardware
Configure software drivers to communicate between a PLC and a computer
Use PLC software to communicate with a virtual PLC
Create, test and debug PLC ladder programs
Edit and modify PLC programs
Use PLC instructions
- Bit, Off Delay Timer, Down Counter, Shift, Integer

Assessment

This course covers some of the outcomes described in the following national UEE Electrotechnology training package competencies:

UEECD0007 - Apply work health and safety regulations, codes and practices in the workplace
UEECD0051 - Use drawings, diagrams, schedules, standards, codes and specifications
UEECS0033 - Use engineering applications software on personal computers
UEEIC0013 - Develop, enter and verify discrete control programs for programmable controllers

and skill set:

UEESS00135 - Instrumentation - Programmable Control Systems Skill Set

More Information

More Information
Who Should Attend	Suitable for people with developing or existing PLC knowledge, including electricians, electrical technicians, engineers and maintenance staff seeking to build skills in PLC diagnostics, advanced instructions and practical automation applications.
Prerequisites	To complete this course, you should have finished PLC Programming Introduction or have suitable PLC programming experience, and be familiar with common Microsoft Windows tasks such as file management, navigation, software installation, and basic settings.
Hours to Complete	The course requires about 40 hours to complete. Actual time may vary depending on learning pace, computer skills, and how much time is spent reviewing optional resources or practising the included activities.

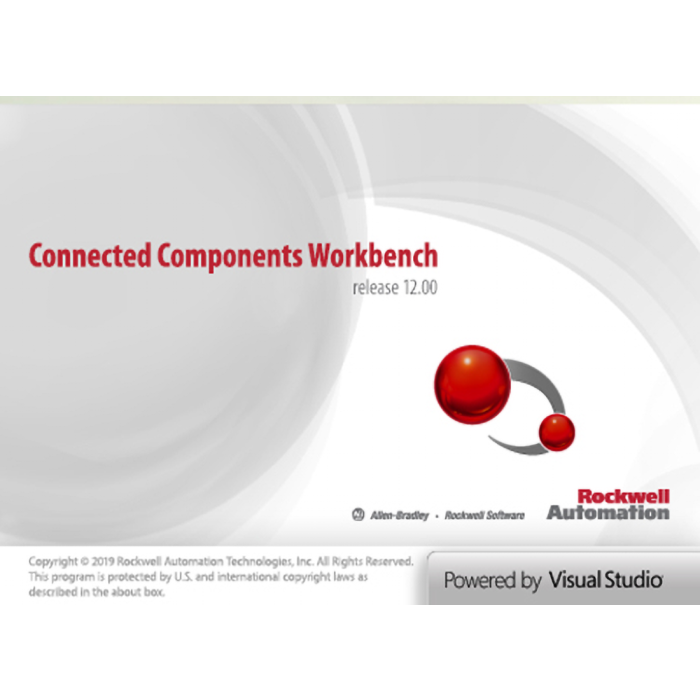

Software Download	Participants receive links to download and install Rockwell Software Connected Components Workbench (CCW) Standard Edition (Free). CCW must be installed to access lessons, simulations, and course activities. Refer to Terms and Conditions for details.
Computer Hardware	A computer meeting the minimum specifications is required. A higher‑performance system will improve responsiveness when running CCW, simulations, and other course software used throughout the training.
Computer Requirements	Minimum specifications: Intel Core i5 2.4 GHz or equivalent, 8 GB RAM, 20 GB free disk space with at least 2 GB for the installer, and a Windows‑compatible pointing device such as a mouse or trackpad for accurate navigation.
Operating System	CCW supports 64‑bit Windows 10 and Windows 11 Professional or Enterprise. Microsoft .NET Framework 3.5 SP1 must be manually enabled or installed to ensure correct operation of CCW and related course software.
